combines IR and UV, signal processing, communication control, computer and mechanical transmission technologyfire discovered, Tracing and Positing immediately, Intelligent scanning fire sourcesfire is discovered, The device starts immediately, Intelligent scanning of fire sources, Determine the specific location of the fire source as quickly as possiblesends out a fire alarm signal, Start the water pump , Open the solenoid valve, aims at the fire source to spray waterProduct Description

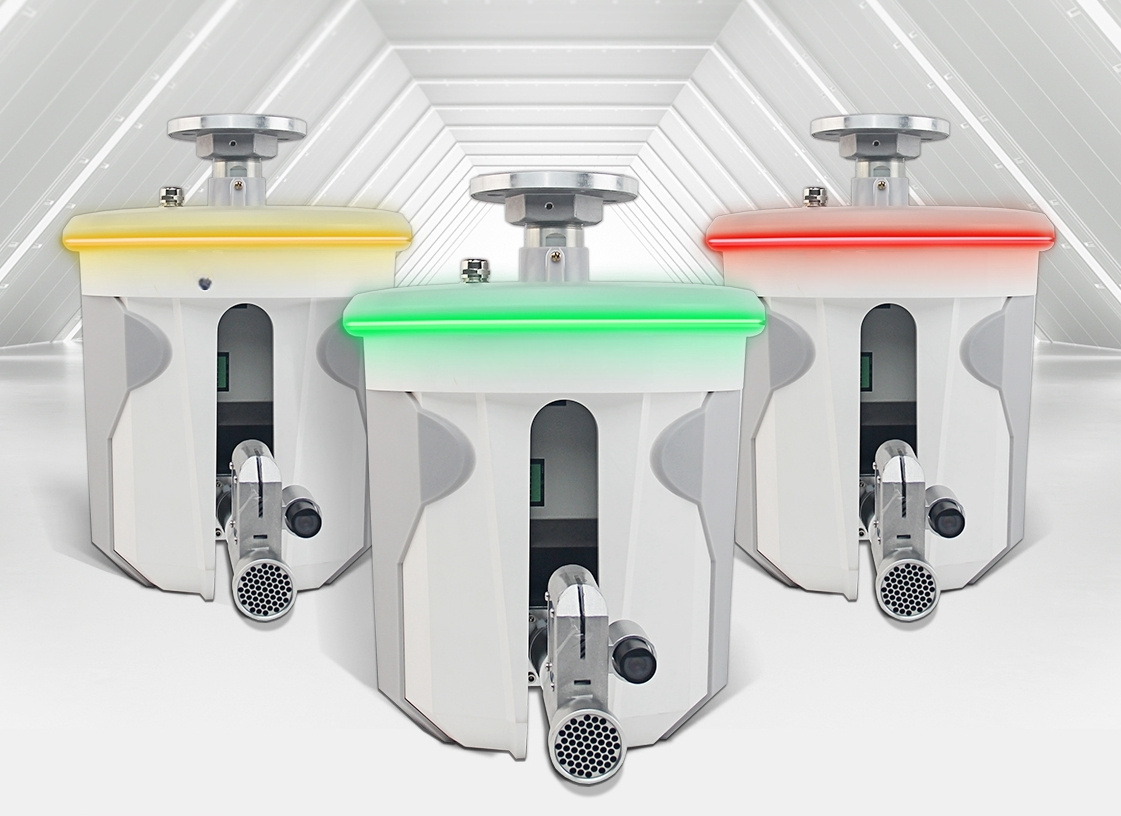

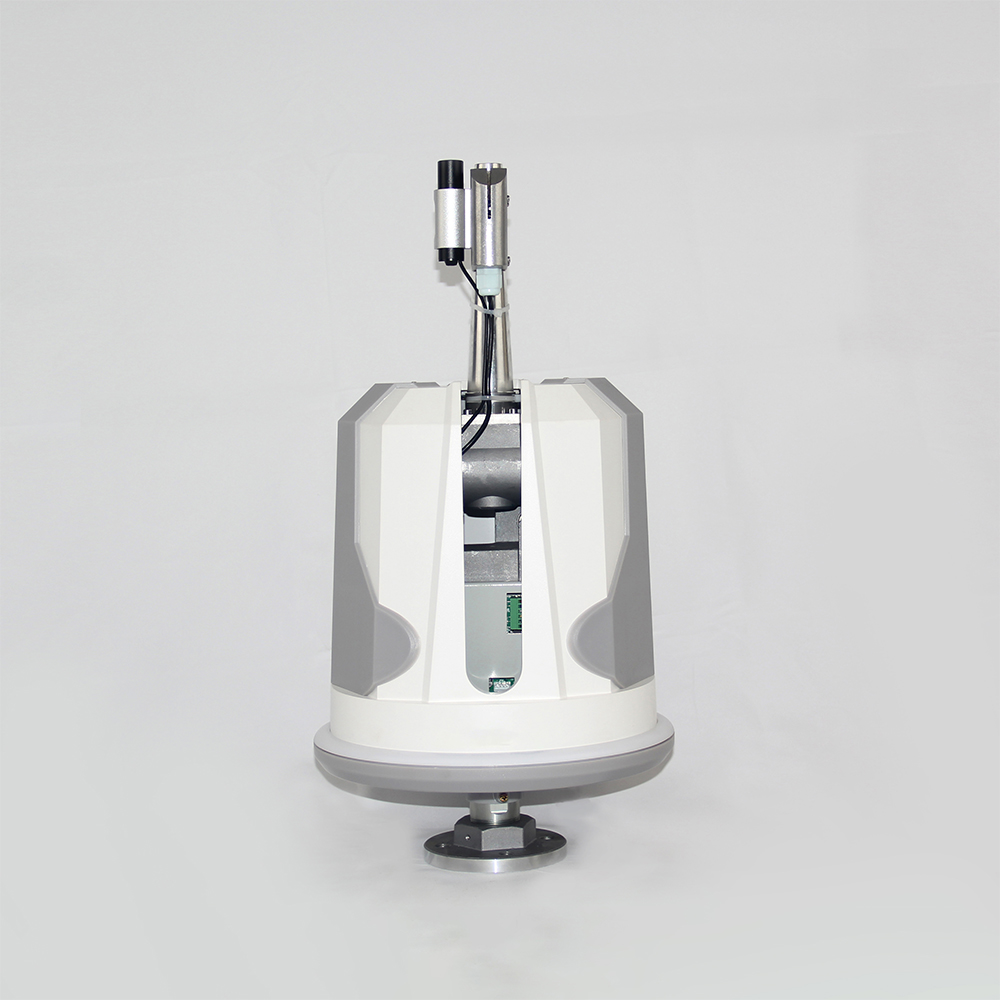

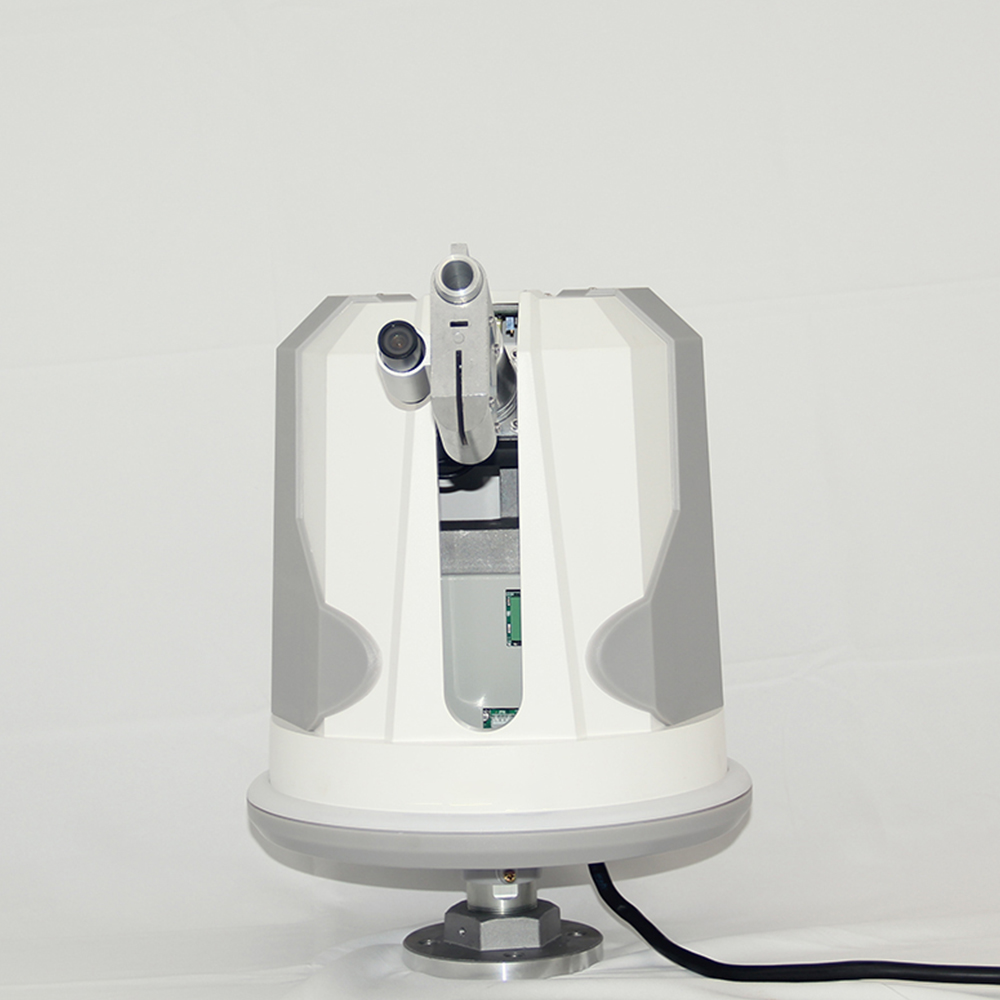

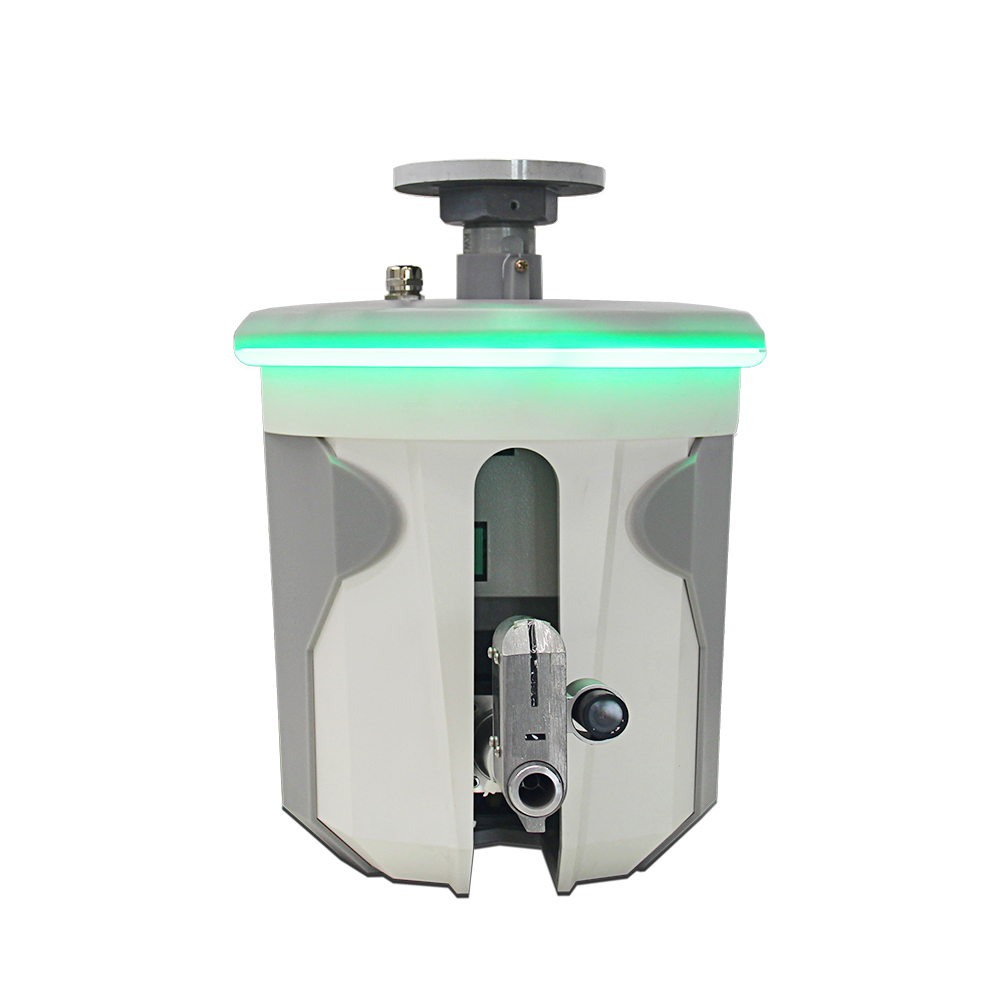

Automatic tracking and positioning jet fire extinguishing device-Automatic Monitor /Detection Fire Water Cannon CV 35is a high-tech fire -product t hat combines infrared and ultraviolet, signal processing, communication control, computer and mechanical transmission technology. When the source of fire is discovered, The device starts immediately, Intelligent scanning of fire sources, Determine the specific location of the fire source as quickly as possible, The controller sends out a fire alarm signal, Start the water pump at the same time, Open the solenoid valve, The device aims at the fire source to spray water to extinguish the fire. After the fire source is extinguished, The controller then issues a command to stop water injection. If a new fire source is discovered, The fire extinguishing device will repeat the above process, Return to the monitoring state after all fire sources are extinguished.
Technical Parameters
model | ZDMS 0 . 6 / 5 S - CV 3 0 | ZDMS 0 . 6 / 1 0 S - CV 3 5 | Positioning time | ≤ 30 seconds |
Fixed work stress | 0.6MPa | Voltage/power consumption | AC 220 V/Monitor: 1 W, Scan: 50 W | |
Limited Data | 5L/s | 10L/s | communication method | RS 485 (communication with on-site manual control box) |
Install valve flange | DN 32 | Horizontal angle of rotation | 360° | |
Maximum protection radius | 30 m | 35m | pitch angle | - 90°～30° |
Installation height | 6～15m | Implementation standard number | GB 25204-2010 | |
Product Advantages
The automatic tracking and positioning jet fire extinguishing device sprays water in a columnar shape. Long range, The scope of protection is wide, Strong fire extinguishing ability. The system only extinguishes fire in the fire area. It has basically no impact on fire-free areas. This reduces the losses caused during the fire extinguishing process to a minimum.
This product is mainly used in tall spaces. for example: Airports, stadiums, stations, factories, hospitals, shopping mall halls, convention and exhibition centers and other places.
Product matching
Name | Cat. No | Produce Taste | Supporting specifications |
Control host |
CV-QT 01 |
|
1 unit |
Manual control panel |
CV-SKP 101 |
|
1 control 6 |
Junction Box |
CV-JXH 101 |
|
1 on 1 |
Electromagnetic valve |
DN 50 |
|
1 on 1 |
Analog terminal water testing device |
MD-CV-25 |
|
1 unit |
